AES

AES

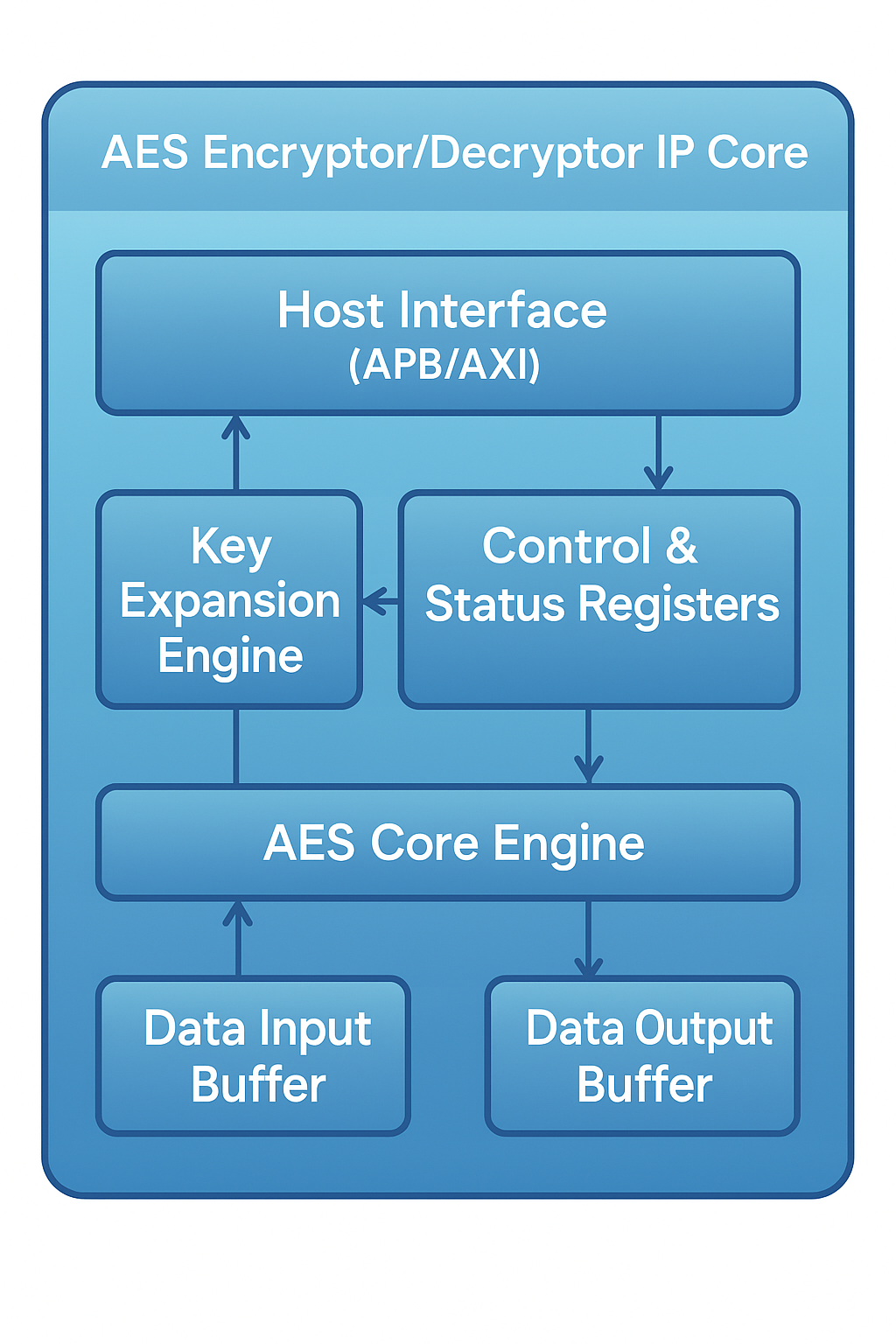

The silicon proven AES Encryptor/Decryptor IP Core delivers high-performance, standards-compliant data security for SoC, ASIC, and FPGA platforms. Supporting AES-128, AES-192, and AES-256 key lengths, this silicon-proven IP implements the full Advanced Encryption Standard (AES) algorithm as specified by NIST FIPS 197. Designed for seamless integration, the core enables real-time, low-latency encryption and decryption with configurable operating modes, offering robust protection for sensitive data in embedded, networking, storage, and consumer applications.

Key Features

  • Full compliance with AES (FIPS 197) standard
  • Supports key sizes: 128, 192, and 256 bits
  • Encryption and decryption in ECB, CBC, CTR, GCM, and XTS modes
  • High throughput: Configurable pipelined or iterative architecture
  • Low latency
  • Supports streaming and block processing
  • Integrated key expansion and secure key storage
  • APB/AXI4-Lite host interface for easy SoC integration
  • Programmable interrupts, status, and error reporting
  • Optional side-channel countermeasures (masking, SCA resistance)

High-performance embedded processors, Network switches, routers, and storage controllers, Consumer multimedia and gaming devices Industrial and automotive computing AI/ML accelerators, HPC, and datacenter

Download Product Brief Enquire about AES
