MIPI I3C Controller

MIPI I3C Controller

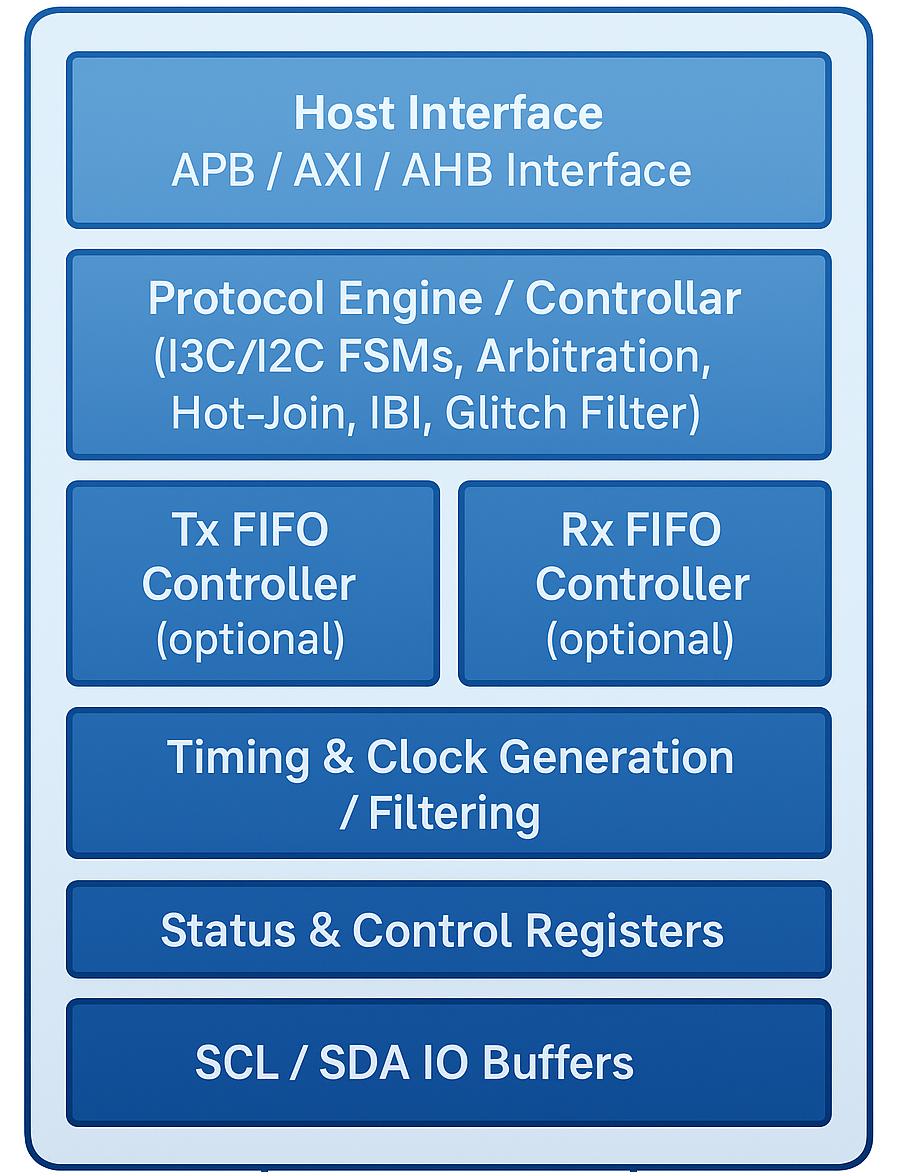

The MIPI I3C Controller IP Core is a high-performance, silicon-proven serial communication solution designed for next-generation embedded systems. Fully compliant with the MIPI Alliance I3C specification (v1.1 and beyond), this IP core supports both master and slave operation and offers seamless backward compatibility with legacy I2C devices on the same bus. Designed for easy integration into SoCs and FPGAs, the core features configurable APB and AXI bus interfaces, low power consumption, and advanced features such as dynamic address assignment, in-band interrupt handling (IBI), hot-join capability, and support for high data rates. Its backward compatibility ensures interoperability in mixed I2C/I3C environments, enabling a smooth migration path from I2C to I3C technology.

Key Features

  • IEEE 802.3 Compliant
  • Support for IEEE 1588-2002 and IEEE 1588-2008 standards for precision networked clock
  • Full-duplex mode at 10/100/1000 Mbps
  • Half-duplex mode at 10/100 Mbps
  • Configurable to support data transfer rates of 10/100/1000Mbps, 10/100 Mbps only or 1000 Mbps only
  • Multiple TCP/IP offload functions supported
  • PHY Interfaces Gigabit Media Independent Interface (GMII) ,Media Independent Interface (MII) , Reduced GMII (RGMII) , Serial GMII (SGMII)
  • Fully synchronous design operating on a single system clock
  • Supports: 32/64/128-bit data transfers ,Individual programmable burst size for Transmit and Receive DMA Engines
  • Descriptor architecture allowing large blocks of data transfer with minimum CPU intervention & comprehensive status reporting for normal operation and transfers with errors
  • Programmable interrupt options for different operational conditions
  • Provides per-frame Transmit/Receive complete interrupt control
  • Provides separate ports for host CSR and host DATA access configurable for FIFO, APB, AHB, or AXI interfaces

embedded control, sensor hubs, mobile devices, industrial automation, power management, and any design standards-compliant I3C or I2C communication..
