DDR-4 Controller

The DDR4 Controller IP Core is a high-speed, silicon-proven memory interface solution, fully compliant with JEDEC DDR4 SDRAM standards. Designed for seamless integration into FPGA, ASIC, and SoC platforms, the core supports data rates up to 3200 MT/s and advanced features such as multi-port arbitration, ECC, and low-power operation. With flexible APB and AXI host interfaces, the controller enables rapid, robust connectivity to high-density DDR4 memory devices for demanding embedded, consumer, and enterprise applications. Its architecture features multi-port arbitration, allowing simultaneous access from multiple system masters without bottlenecks, and built-in Error Correction Code (ECC) capabilities for enhanced data integrity and system reliability.This versatility makes it the ideal choice for designers seeking to maximize memory bandwidth, minimize latency, and ensure long-term reliability in mission-critical embedded, consumer, and enterprise platforms

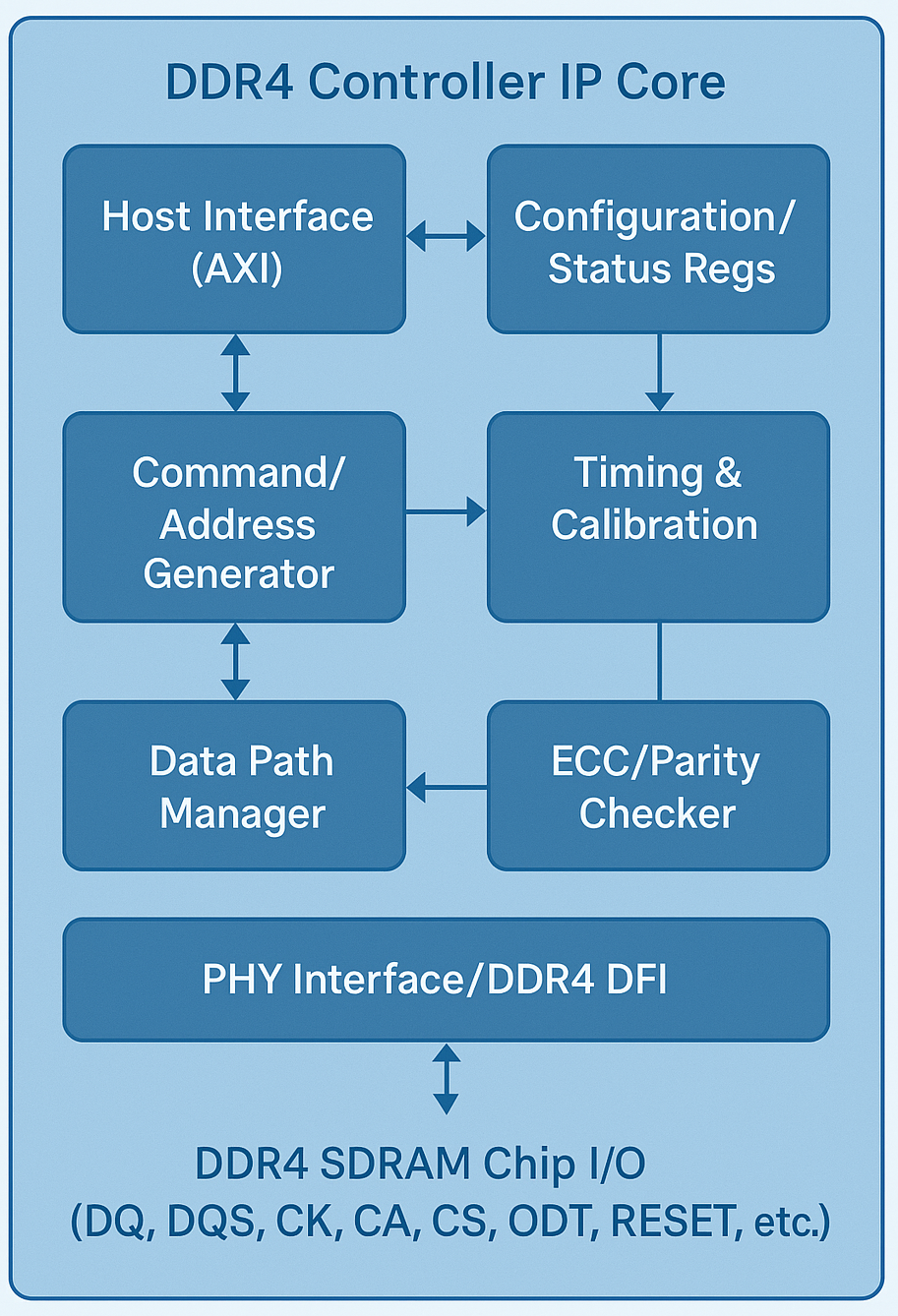

Key Features

• Full JEDEC DDR4 SDRAM compliance (up to 3200 MT/s)
• Supports x4, x8, and x16 DDR4 DRAM devices
• Multi-port AXI/AXI4/AXI4-Lite interface (optional APB for configuration)
• 32/64/128-bit memory bus width options
• Automatic initialization, calibration, and training (write leveling, read gate)
• Configurable command, address, and data mapping
• Built-in Error Correction Code (ECC) and data scrub support
• Multi-bank, multi-rank, and multi-chip select support
• Low-power operation: deep power-down, self-refresh, clock gating
• Configurable burst length and programmable timing parameters
• Integrated FIFO and programmable arbitration for high throughput
• Comprehensive interrupt, error status, and debug features

High-performance embedded processors, Network switches, routers, and storage controllers, Consumer multimedia and gaming devices Industrial and automotive computing AI/ML accelerators, HPC, and datacenter.
