Ethernet MAC Tri-Mode 10/100/1000

Ethernet MAC Tri-Mode 10/100/1000

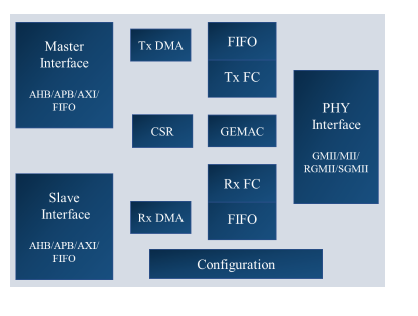

The VCores Ethernet GMAC IP empowers hosts to transmit data using the Gigabit Ethernet protocol (IEEE 802.3) across speeds of 10M, 100M, and 1G. It comprises three primary layers: the Gigabit Ethernet Media Access Controller, the MAC Transaction Layer, and the MAC DMA Controller. The MAC Transaction Layer offers exceptional configurability, ensuring optimal performance and supporting a wide array of implementations tailored to end-system applications. Additionally, it provides extensive support for various application interfaces, facilitating seamless integration into SoCs. Leveraging silicon-proven technology and designed for straightforward integration into ASICs and FPGAs, the VCores GMAC IP boasts a user-friendly application interface, enabling designers to easily align functional and implementation goals with design requirements. Rigorously verified using cutting-edge methodologies, including RTL design, verification, hardware verification and interoperability tests, this IP effectively mitigates risks.

Key Features

  • IEEE 802.3 Compliant
  • Support for IEEE 1588-2002 and IEEE 1588-2008 standards for precision networked clock
  • Full-duplex mode at 10/100/1000 Mbps
  • Half-duplex mode at 10/100 Mbps
  • Configurable to support data transfer rates of 10/100/1000Mbps, 10/100 Mbps only or 1000 Mbps only
  • Multiple TCP/IP offload functions supported
  • PHY Interfaces Gigabit Media Independent Interface (GMII) ,Media Independent Interface (MII) , Reduced GMII (RGMII) , Serial GMII (SGMII)
  • Fully synchronous design operating on a single system clock
  • Supports: 32/64/128-bit data transfers ,Individual programmable burst size for Transmit and Receive DMA Engines
  • Descriptor architecture allowing large blocks of data transfer with minimum CPU intervention & comprehensive status reporting for normal operation and transfers with errors
  • Programmable interrupt options for different operational conditions
  • Provides per-frame Transmit/Receive complete interrupt control
  • Provides separate ports for host CSR and host DATA access configurable for FIFO, APB, AHB, or AXI interfaces

High-performance embedded processors, Network switches, routers, and storage controllers, Consumer multimedia and gaming devices Industrial and automotive computing AI/ML accelerators, HPC, and datacenter.
